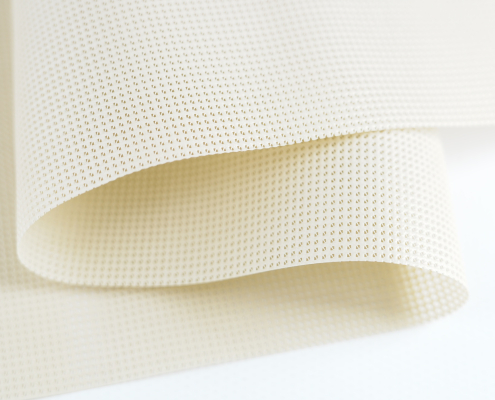

PVC Coated Mesh Fabric2202 12×12/Inch

PVC Coated Mesh Fabric Net2202 12×12/Inch

I. Basic Composition:

• Base Material: High-tenacity polyester or nylon mesh scrim
• Coating: PVC compound with plasticizers, stabilizers, and additives
• Reinforcement: Embedded fiber network providing structural integrity
• Surface Treatment: UV-resistant coatings, colorants, and specialized finishes

The combination of these elements creates a material that offers both functionality and durability, with the mesh structure allowing for controlled permeability while maintaining strength and stability.

II. Production Process

The manufacturing of PVC mesh fabric is a sophisticated process that requires precision at each stage to achieve the desired performance characteristics and visual properties.

Step-by-Step Manufacturing Process:

STEP 1: Mesh Production:

High-tenacity polyester or nylon yarns are knitted or woven into mesh fabric with specific patterns and densities. The mesh structure determines the final fabric’s strength and openness.

STEP 2: Mesh Pre-treatment

The mesh fabric undergoes heat setting and cleaning to remove impurities, ensure dimensional stability, and improve adhesion properties before coating.

STEP 3: PVC Compound Preparation

PVC resin is mixed with plasticizers, stabilizers, pigments, and specialized additives in precise formulations to achieve desired flexibility, weather resistance, and other properties.

STEP 4: Coating Application

The PVC compound is applied to the mesh substrate using direct coating, transfer coating, or laminating techniques to achieve uniform coverage while maintaining mesh openness.

STEP 5: Gelation & Fusion

The coated fabric passes through ovens at controlled temperatures (typically 160-200°C) to fuse the PVC into a continuous film bonded to the mesh substrate.

STEP 6: Surface Treatment

Additional coatings may be applied for UV protection, dirt resistance, antimicrobial properties, or enhanced visual appearance.

STEP 7: Embossing & Finishing

Texture is added for aesthetic appeal and functionality, and final treatments like water repellency or flame retardancy are applied.

STEP 8: Quality Control

Each batch undergoes rigorous testing for weight, thickness, strength, mesh integrity, and performance characteristics before approval.

Advanced manufacturing facilities can produce PVC mesh fabric in various widths, typically ranging from 1.5 to 3.2 meters, with production speeds up to 1,500 meters per hour depending on the specific formulation and mesh density.

III. Characteristics of PVC Mesh Fabric

PVC mesh fabric offers a unique combination of properties that make it suitable for diverse applications across multiple industries. Its characteristics can be tailored through variations in mesh density, coating thickness, and additive formulations.

Breathability The open mesh structure allows air circulation while providing protection, making it ideal for applications requiring ventilation.

Strength & Durability Mesh reinforcement significantly enhances tear and tensile strength compared to non-reinforced PVC materials.

UV Resistance Specialized formulations with UV stabilizers provide excellent resistance to sunlight degradation, extending service life.

Water Resistance PVC coating creates a water-resistant barrier while maintaining breathability through the mesh openings.

Flame Retardancy Can be manufactured to meet various flame retardancy standards through specialized additives.

Customizability Available in various colors, patterns, and opacity levels to meet specific aesthetic and functional requirements.



Advantages and Limitations:

Advantages Superior tear and puncture resistance compared to non-reinforced materials Excellent dimensional stability under tension Controlled permeability for air and light Wide range of customization options Good resistance to mildew and environmental degradation

Limitations LimitationsGenerally higher cost than non-reinforced PVC fabrics Limited transparency compared to clear PVC films Potential for plasticizer migration in lower-quality formulations Recyclability challenges due to composite nature Weight increases with reinforcement density

The specific characteristics of PVC mesh fabric can be engineered to meet precise application requirements through adjustments in mesh type, coating formulation, and finishing treatments.





IV. Applications and Specifications

PVC mesh fabric finds diverse applications across multiple industries, each with specific requirements that dictate the ideal fabric specifications. The versatility of this material allows it to be engineered for specialized uses while maintaining core performance characteristics.

Primary Application Areas:

Shade Mesh Fabric Designed to provide sun protection while allowing air circulation. Used in agriculture, outdoor events, and architectural shading. Key Requirements: UV stability, specific shade percentages, durability against environmental elements Common Specifications: 30-90% shade factor, 180-350 gsm, HDPE or polyester mesh base	Safety Mesh Fabric Used in construction, sports facilities, and industrial settings for fall protection, debris containment, and safety barriers. Key Requirements: High tensile strength, tear resistance, visibility markings, flame retardancy Common Specifications: 500-1000 gsm, high-tenacity polyester mesh, reinforced edges
Mosquito Net Provides protection against insects while maintaining ventilation. Used in residential, commercial, and healthcare settings. Key Requirements: Fine mesh size, durability, washability, often insecticide-treated Common Specifications: 100-200 gsm, mesh size 1.2×1.2mm or smaller, often polyethylene base	Facade Mesh Used in architectural applications for building wraps, decorative elements, and solar protection. Key Requirements: Aesthetic appeal, weather resistance, dimensional stability, fire ratings Common Specifications: 300-600 gsm, various colors and patterns, often with UV-stabilized coating

Specification Guidelines by Application:

Application	Weight Range (gsm)	Mesh Size	Reinforcement  Type	Special Features
Shade Mesh	180-350	Varied (by shade %)	HDPE /Polyester	UV stabilization, specific shade factors
Safety Mesh	500-1000	20-50mm	High-tenacity polyester	Flame retardant, high visibility options
Mosquito Net	100-200	1.2×1.2mm or smaller	Polyethylene /Polyester	Insecticide treatment, wash durability
Facade Mesh	300-600	Architectural patterns	Fiberglass /Polyester	Custom colors, print designs, fire ratings
Industrial Curtains	400-800	10-30mm	Polyester scrim	Chemical resistance, temperature stability

When selecting PVC mesh fabric for a specific application, considerations should include environmental exposure, mechanical stresses, regulatory requirements, and expected service life to ensure optimal performance and cost-effectiveness.

V. Conclusion

PVC mesh is a versatile and adaptable material solution, combining the protective properties of a PVC coating with the structural advantages of mesh reinforcement. Dejia’s PVC mesh has a wide range of applications, including shade structures, security barriers, mosquito nets, and building facades. We understand the diverse requirements of PVC mesh for all applications, and our manufacturing process allows for precise customization to meet specific performance requirements. With continuous advancements in materials science, more potential applications are constantly being explored.

With the increasing importance of sustainability, the continued development of recyclable formulations and environmentally friendly production methods will further enhance the appeal of PVC mesh in the global market.

Serving customers worldwide, we have a deep understanding of the global market and can provide advice on your fabric selection.
