What fabrics are suitable for flexible water tanks? What fabrics are suitable for flexible oil tank storage?

We offer different fabric solutions for storing water and various liquids, such as irrigation water tanks, drinking water tanks, container transport liquid tanks, and energy storage such as gasoline, diesel, and aviation kerosene.

Different fabrics are suitable for storing different liquids.

Our solutions.

During liquid water storage, temperature, bacteria, and the introduction of foreign substances can lead to the growth of organisms and bacteria in the water. The stability and antibacterial properties of the fabric are particularly important for long-term storage. PVC is a very stable and widely applicable material that can store highly acidic or alkaline water, as well as various chemicals, etc. It has a temperature resistance range of -30°C to +70°C, making it suitable for most countries worldwide. In most cases, agricultural countries or countries with unstable rainfall have a greater demand for water storage tanks. Some are also used for industrial water storage, fire fighting water, emergency rescue, and military security supplies.

Dejia Fabric TPU rolls

What are the commonly used specifications for PVC water storage fabrics? Suitable for liner tanks where strength requirements are not very high, but good adhesion, low leak, and anti-bacterial properties are more important. For small tanks, you can use:

DEJIA Steel Watertank Liner Fabric6701 450gr/m2

Product Link: https://www.dejiafabric.com/product/steel-watertank-liner-fabric6701-450gr-m2/

For medium to large tanks, such as those with a water storage capacity of 30,000 liters or more, you can use:

For larger tanks or where higher fabric strength is required, 900gr/m2 Panama weave fabric can be used.

DEJIA Steel Watertank Liner Fabric6706 900gr/m2 Panama

Product Link: https://www.dejiafabric.com/product/steel-watertank-liner-fabric6706-900gr-m2/

TPU water or oil storage is more often used for higher requirements. For example, TPU water bladders are mostly used for direct drinking because TPU is a more environmentally friendly material. It does not contain any additives, is more environmentally friendly and non-toxic, and can be in direct contact with the human body to store drinking water or beverages. Its chemical structure is also very stable, and it will not introduce the growth of bacteria and microorganisms during long-term storage.

Chemical Resistance Table – TPU Coated Fabrics

Chemical	Resistance	Remarks
Gasoline (Petrol)	Excellent	No significant swelling, retains mechanical properties
Diesel Fuel	Excellent	No significant swelling, retains mechanical properties
Kerosene	Good	Slight softening after long exposure
Crude Oil	Good	Slight softening after long exposure
Ethanol (10%)	Good	Stable under short-term exposure
Methanol	Fair	May cause swelling or slight degradation
Hydraulic Oil	Excellent	Resistant, suitable for hydraulic applications
Engine Oil	Excellent	Resistant, suitable for automotive use
Salt Water (3.5% NaCl)	Excellent	No effect, highly resistant to seawater
Acids (Dilute H2SO4, 10%)	Fair	May show surface dulling after long exposure
Bases (NaOH, 10%)	Fair	Possible surface whitening or slight degradation

TPU oil storage is also a very important and common application, such as in military applications where convenient storage, transportation, and transfer of energy is required, as well as temporary storage and energy oil storage for engineering projects.

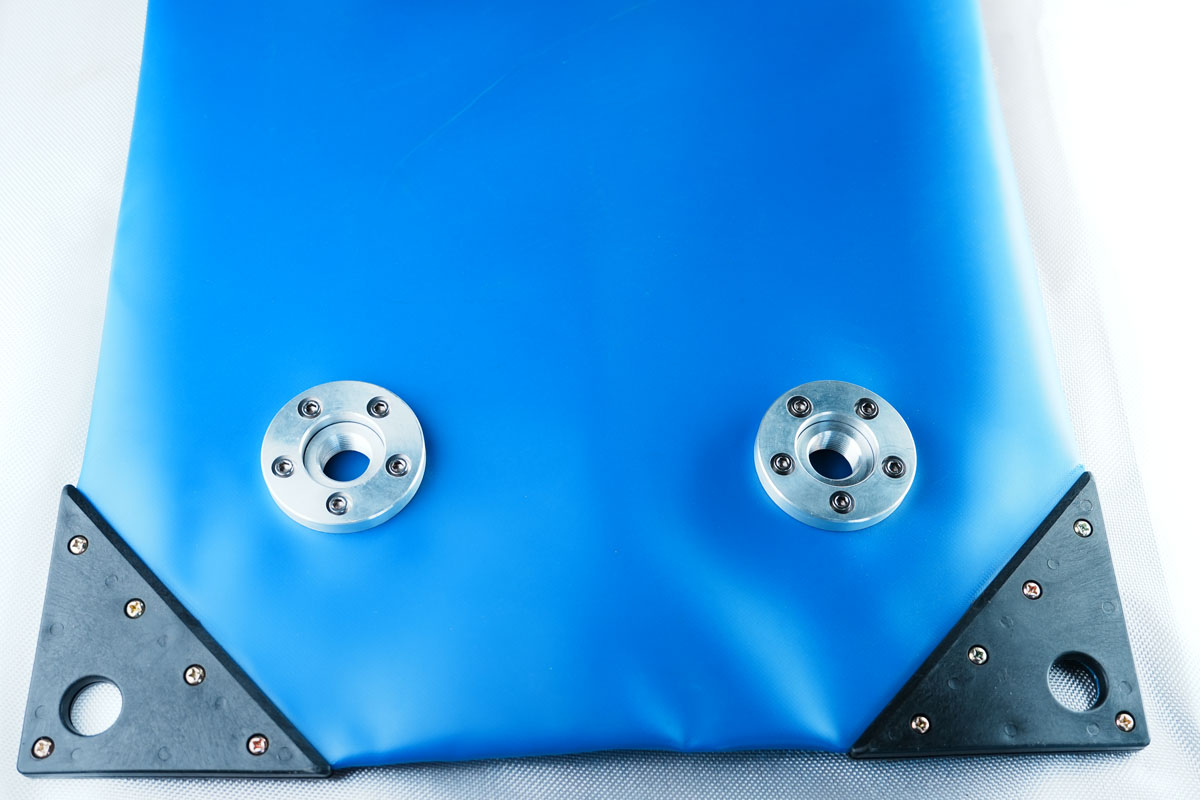

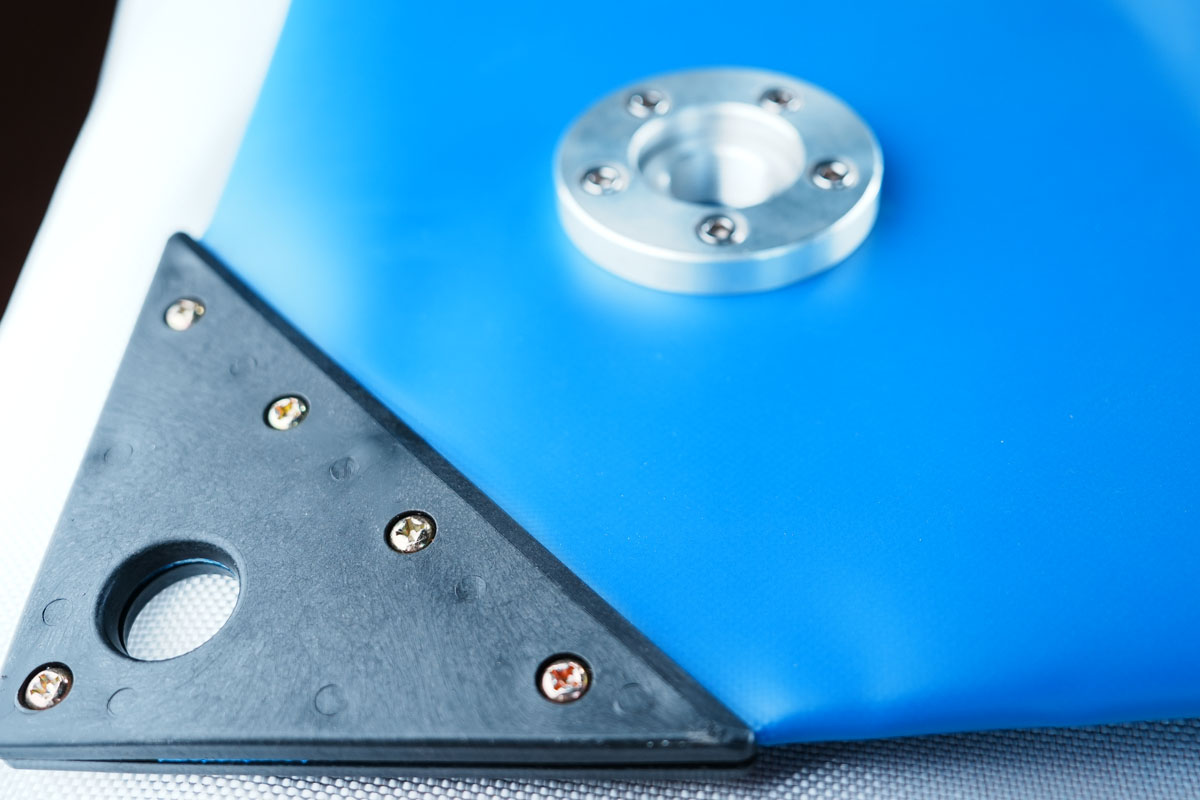

TPU flexible tank Dejia TPU flexible tank Dejia2

What are the commonly used specifications for TPU water storage fabric and TPU oil storage fabric?

For small-scale drinking water storage, a lightweight and portable 700gr/m2 fabric is a good choice. The fabric is soft and elastic, making it easy to fold and store.

DEJIA Ultrafab TPU Serious TPU plain weave double side coated Fabric (9202 700gr/m2)

Product link: https://www.dejiafabric.com/product/ultrafab-tpu-coated-fabric9202-700gr-m2/

For water storage capacities of 2000-20000 liters, a higher-strength panama weave TPU fabric can be selected.

DEJIA Ultrafab TPU Coated Fabric9205 900gsm

Product link: https://www.dejiafabric.com/product/ultrafab-tpu-coated-fabric9205-900gr-m2/

DEJIA Ultrafab TPU Coated Fabric9207 1100gsm

Product Link: https://www.dejiafabric.com/product/ultrafab-tpu-coated-fabric9207-1100gr-m2-2/

Or higher strength

DEJIA Ultrafab TPU Coated Fabric9209 1300gsm

Product Link: https://www.dejiafabric.com/product/ultrafab-tpu-coated-fabric9209-1300gr-m2/

These products can be made using Ether or Ester TPU raw materials for different applications, such as water storage, oil storage, aviation fuel storage, or seawater resistance.

Contact the DEJIA team anytime with any questions. Professional PVC and TPU soft liquid storage fabric experts, originating in 1999, Haining, China.
